Loading Bentley Model Geometry to Speckle via Navisworks Connector

Help
1

I am attempting to load some Bentley OpenPlant model geometry to speckle via the Navisworks connector. The geometry is in Navisworks, but seems the Piping geometry is missing in Speckle.

Bentley Model in Navisworks
Bentley Model in Navisworks1285×907 99.5 KB

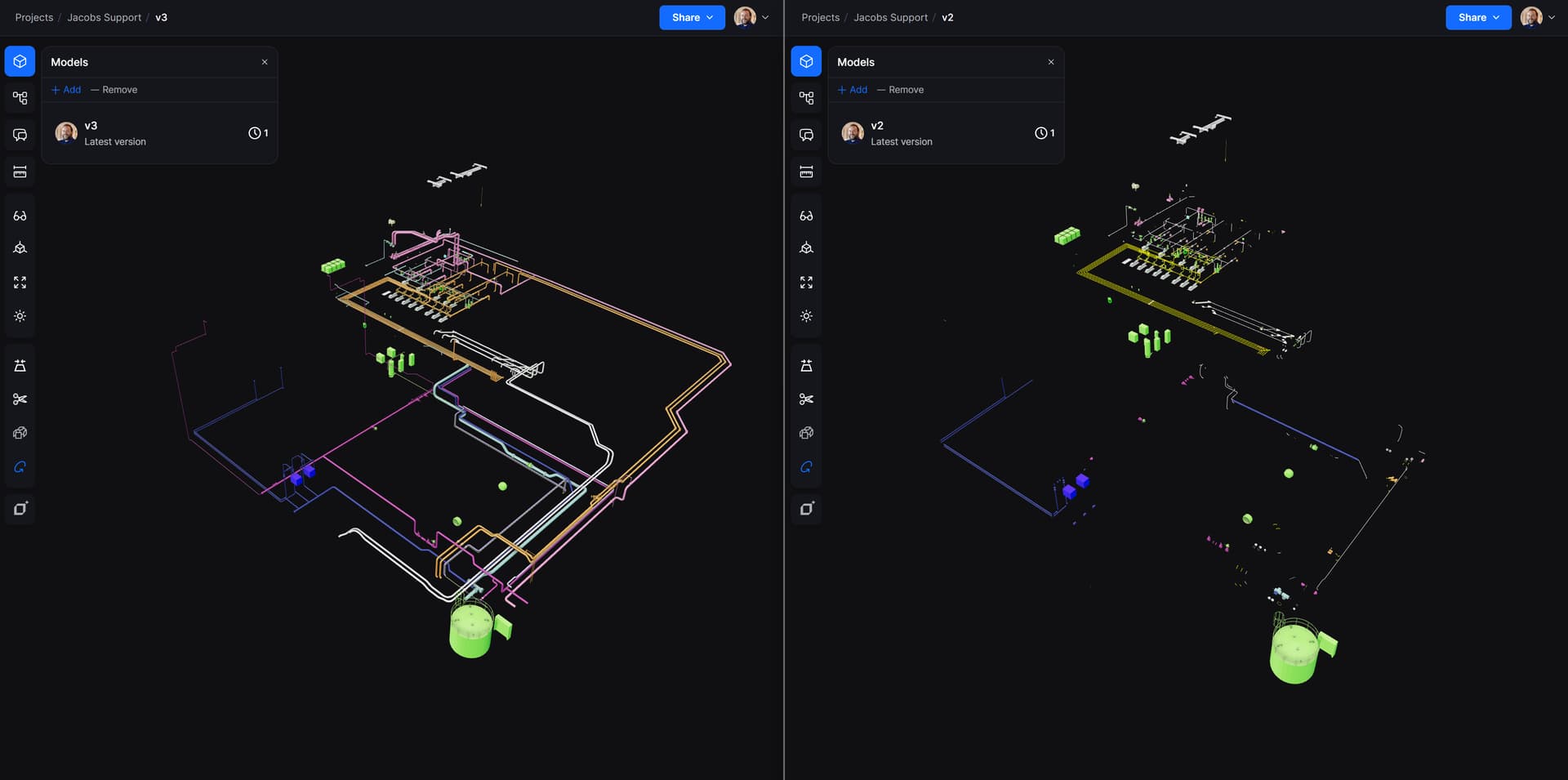

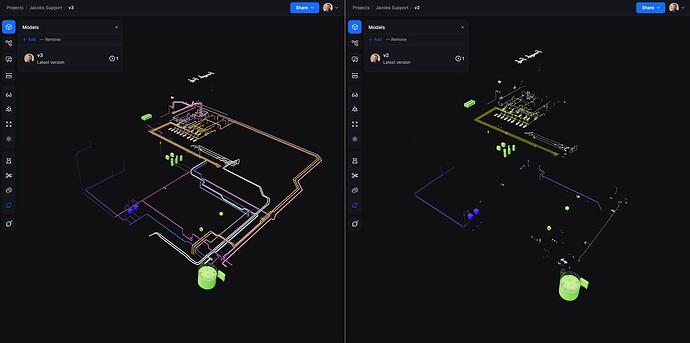

Bentley Model in Speckle via Navis Connector
Bentley Model in Speckle via Navis Connector1370×850 200 KB

2

Here’s a link to the Speckle model;
https://ldd-emea.jacobs.com/projects/8378d4c7d9/models/4c5e3d4da6

4

@AndyD314, instead of the speckle model - could you share a minimal reproducible sample Navis file?

I’m guessing it’s around Object Enablers, but I’m unsure. Just make it a non-pipe and block of plant, and we’ll avoid the secrecy police.

5

Hey thanks Jonathon, sorry for the late reply. I just tried, but seem to be getting a message that “New users cannot upload attachments” would you be able to help with my permissions

6

I have shared a private google dropbox with you.
