REBAR Visualization

JAVIER_ARENAS · 19 March 2025 23:28

Can you tell me, how can I see the rebar in my SPECKLE space ?
I only see lines but I want to see the 3d Rebar.

Thanks

teocomi · 21 March 2025 07:30

Hi Javier,

This is not currently supported, as it can be very heavy geometry.
Can you tell us more about why you need to see the 3D rebar elements?
cc @clrkng

JAVIER_ARENAS · 24 March 2025 04:36

Hi Mateo.

I work in a construction company. It is very usefull to see this 3d elements because I am implementing the use of Speckle as a principal CDE for BIM and my coworkers control the Rebar of the structural elements.

bjoern · 20 May 2025 07:39

Hey @JAVIER_ARENAS

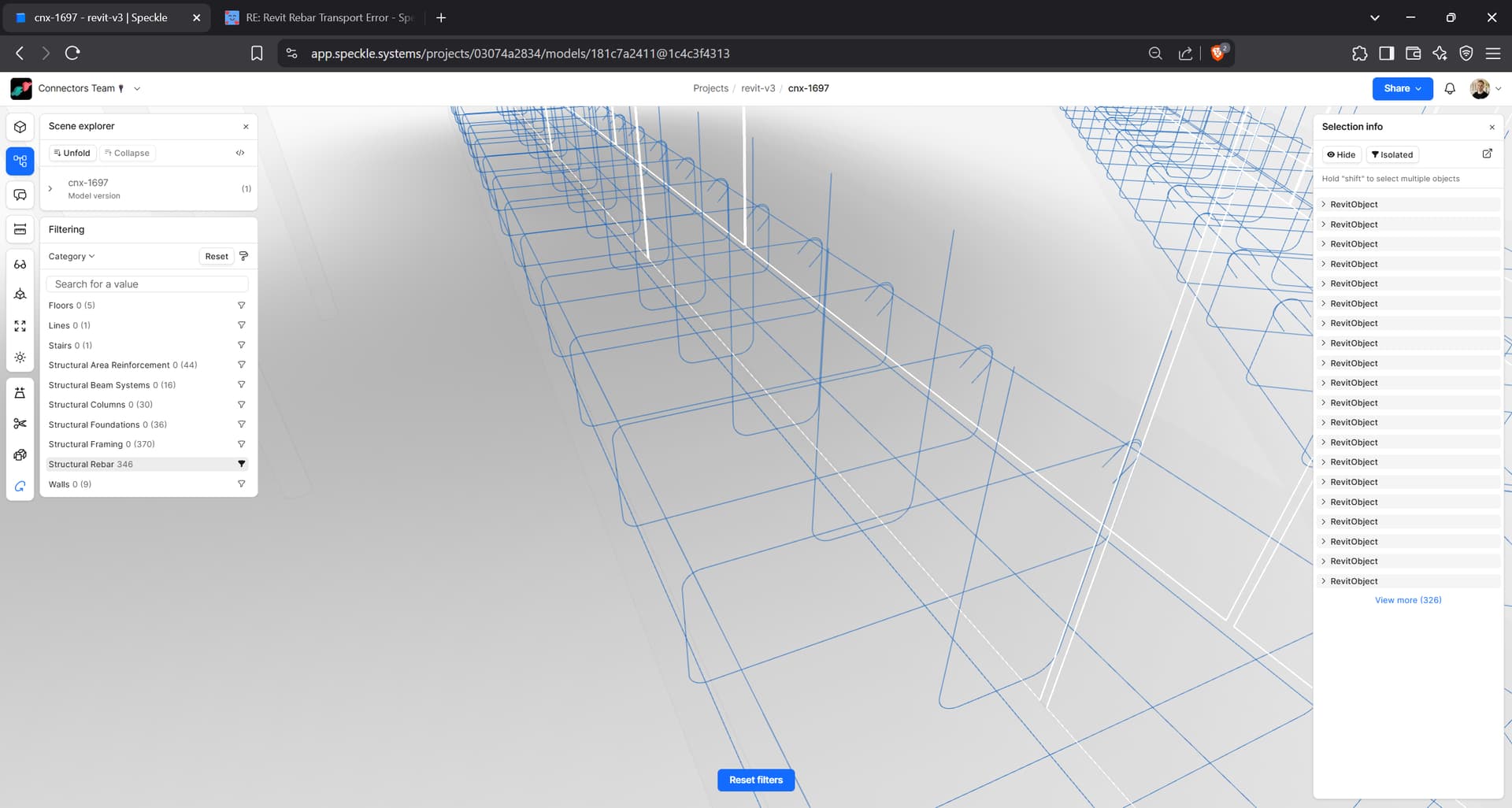

Good news - rebar visualization is in the latest release of the Next-Gen connector. By default, the displayValue of rebar will send as the simplified centreline representation:

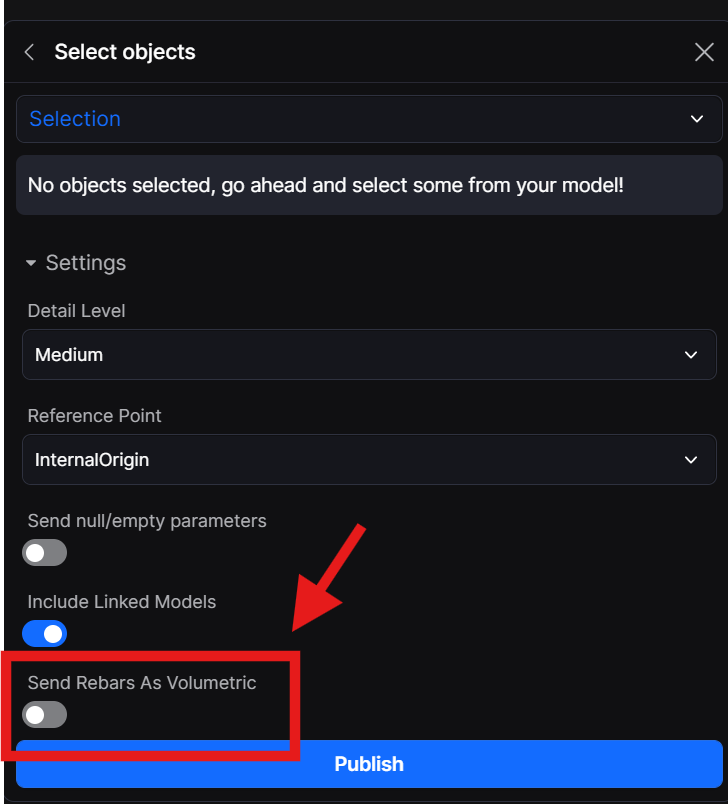

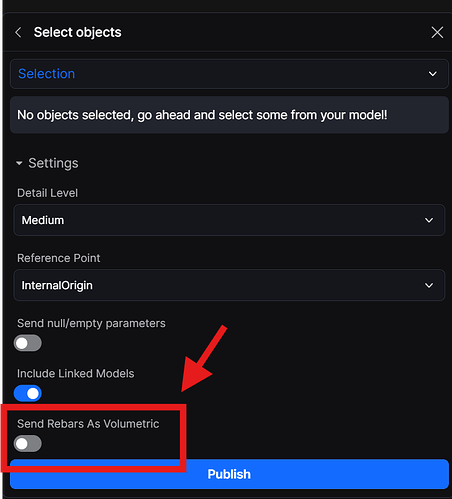

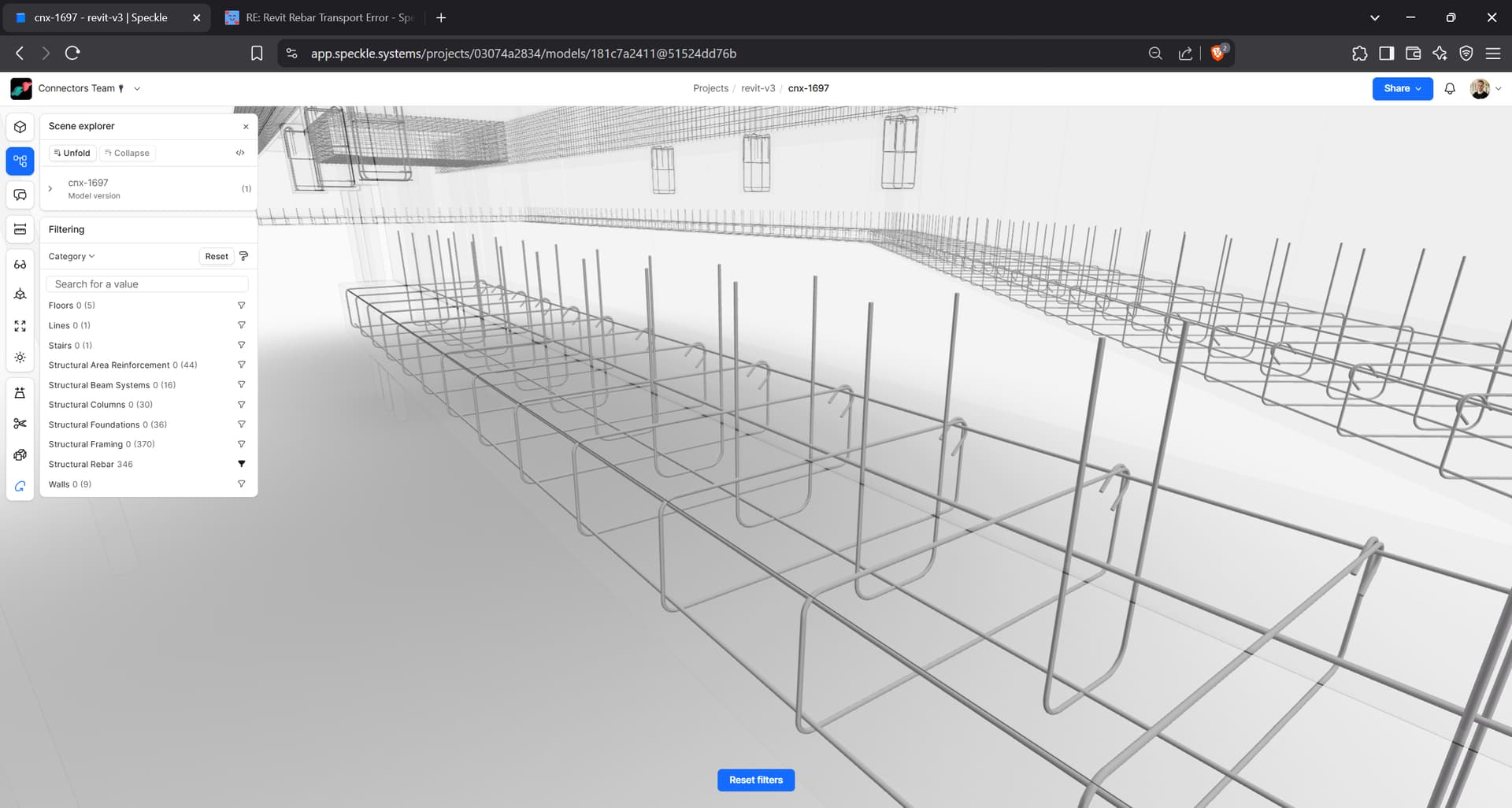

You can, however, toggle Send Rebars as Volumetric which will send the rebar as the extruded volumetric represenations:

Cheers,
Björn
