Grasshopper - missing geometry when receiving

Speckle Help Help (Legacy V2)
,
1

Hello guys!

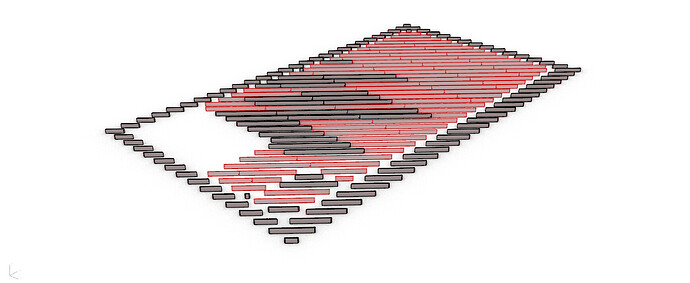

while doing some workflow tests I faced an issue when trying to receive some geometry from Grasshopper; attached a screenshot of the grasshopper preview VS the rhino objects after bake.

2025-04-19_18h08_51
2025-04-19_18h08_511737×713 184 KB

The same model version is received correctly using the Rhino connector (2.21.5), whereas using either the Grasshopper receive component or the NET sdk, the geometries are only getting partially received.

Any suggestion would be awesome :slight_smile:

Link to model:
release/timber - PSC_PaynehamSwimmingCentre | Speckle

Thanks!

2

Hi Federico,

Just to confirm, are you using Rhino/GH 8? Can you share the version?

Thank you!

3

Hey @Nikos !
Rhino/GH 8.

GH Version 1.0.0008,
Rhino Version 8 SR18 (8.18.25098.11001).
Cheers

4

Thanks! I had a look and I didn’t manage to reproduce the issue :face_with_raised_eyebrow:

I plugged the deconstruct component few times and everything is there (i think). All the geometries are baked correctly. I also tested Rhino/GH 7 and worked.

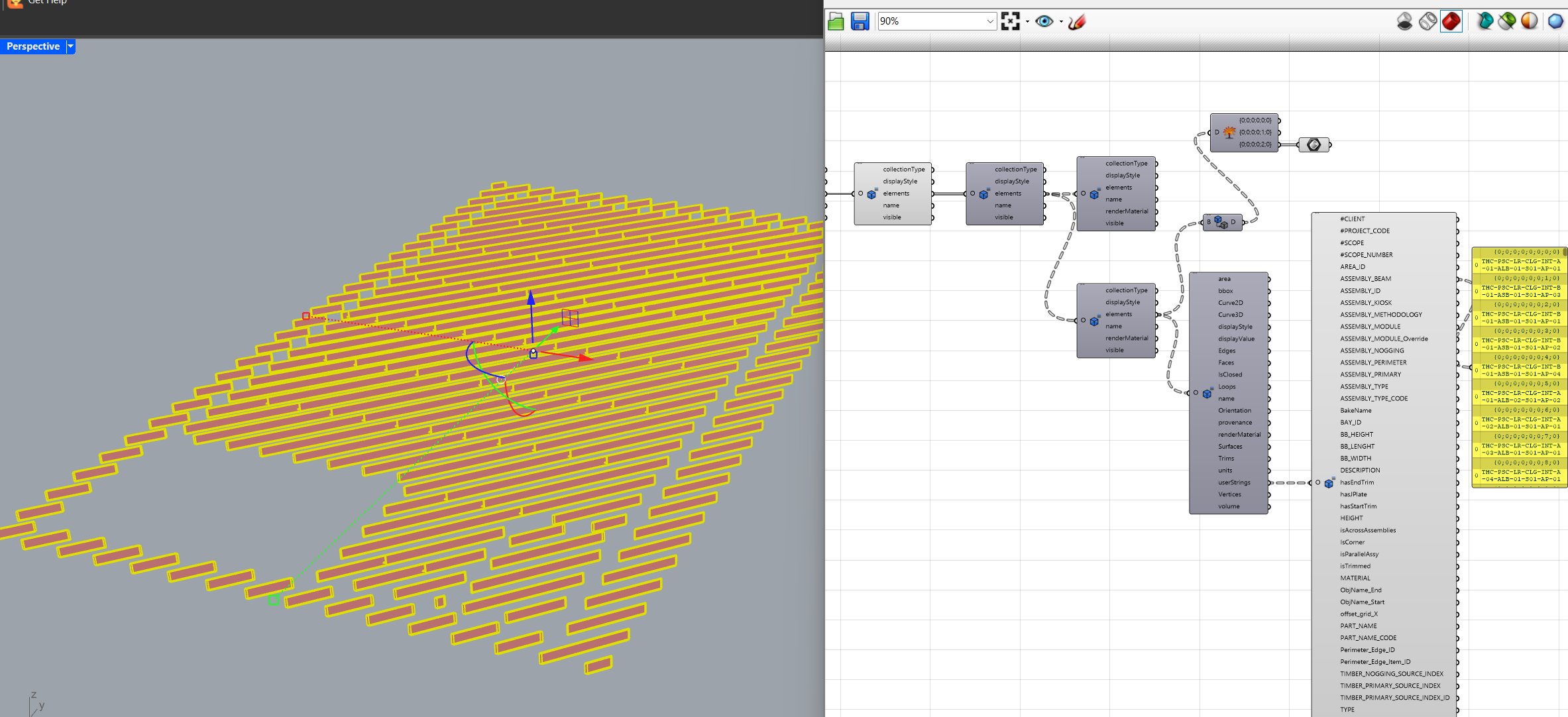

image1920×1014 195 KB

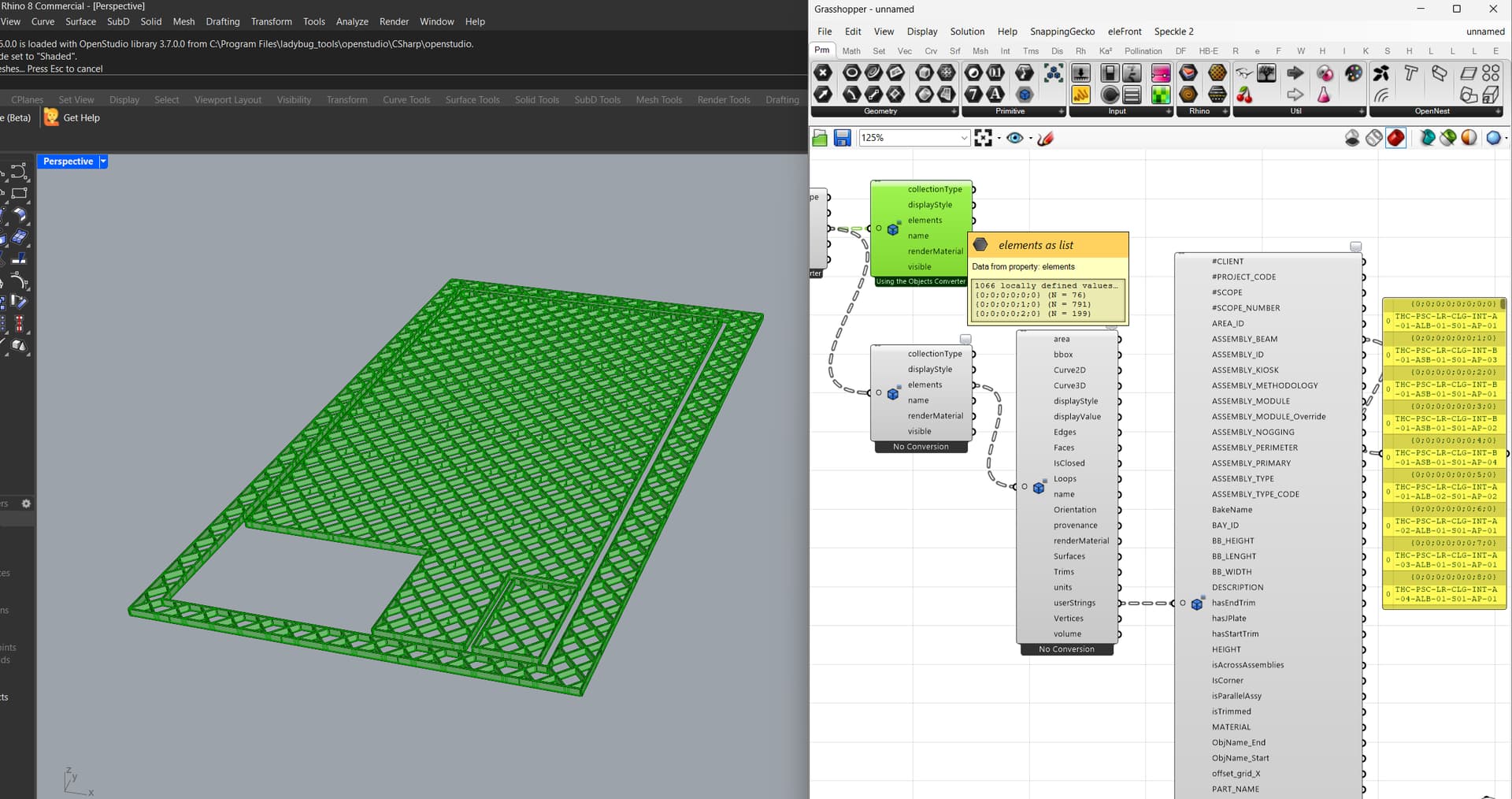

image2366×1082 346 KB

Not sure what is causing this, maybe @clrkng or @dimitrie have some ideas.

Can you maybe share the part of the script that is receiving the components?

1 Like
5

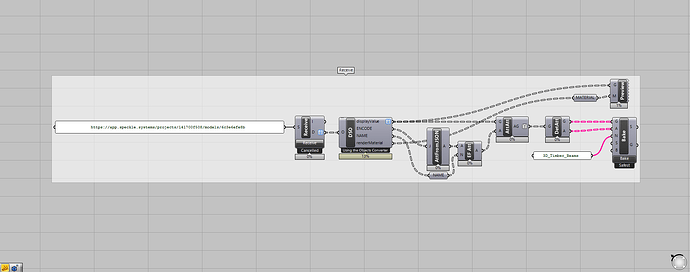

There you go; there is a bit of extra flavour attached after receive but not so relevant in this case.

If I bake the receive manually, i get only the beams in the previous screenshot.

2025-04-22_15h25_28

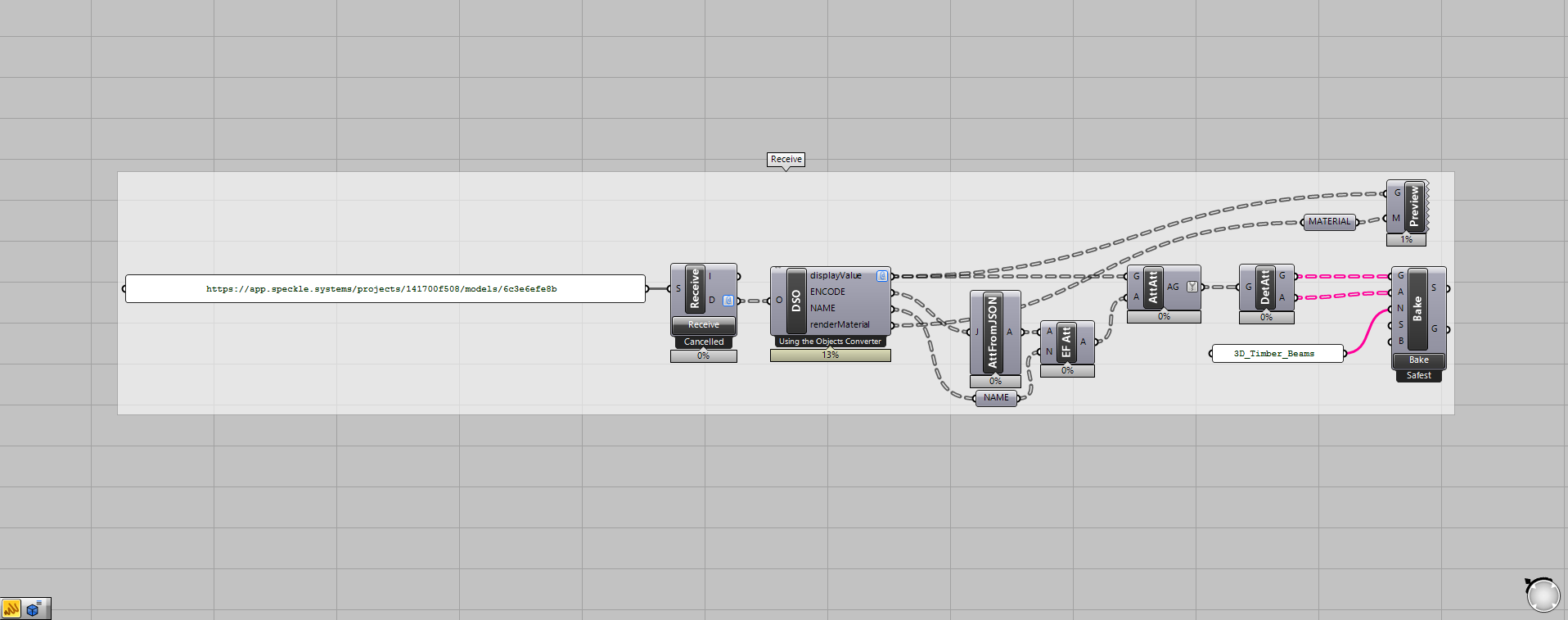

2025-04-22_15h25_281916×757 65.4 KB

6

My bad @Nikos , i shared the wrong URL, that one is working as expected.

This one below is the faulty one:

Many thanks!

1 Like
10

Hey Federico,

Sorry for the late reply, I tested the version that you shared again, and I managed to reproduce the issue. It seems that some of the BREPS are invalid when received, but Mesh works fine.

Do you remember if this model version used to work in the past? Did you use the Speckle C# SDK to sent this?

1 Like
11

The model has been sent using the Speckle grasshopper components, not via the SDK (in this case). The breps are valid in the Rhino document and also when they get referenced in Grasshopper, they become invalid at receive only, both using the Rhino and GH connectors or the SDK.

12

Flagging this to @oguzhan @clrkng - they’re currently on a team retreat, but we’ll investigate asap Federico!

1 Like
