Also, is there a list of analysis result tables are supported by the latest version of speckle? I haven’t been able to locate that information in the Speckle docs. I’d want to request for the following analysis results table to be included:
Joint Displacements
Modal Participating Mass Ratios
Lastly, is there a tutorial/example Speckle Intelligence dashboard that processes ETABS analysis results data?

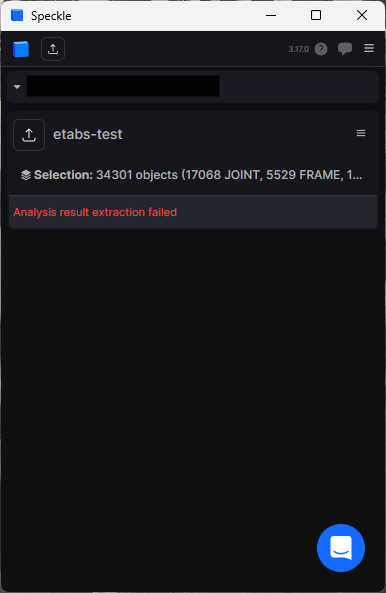

Sorry that you’re having difficulty uploading your model with analysis results. There are a few ETABS “gotchas” that could be causing this.
Was the model unlocked? When unlocked, ETABS wipes all analysis results so we can’t extract results
Which result types were you looking to extract? And were the selected load cases and combinations run? Sometimes partial cases are set to run meaning the selected combos won’t be in the results table at extraction time.
In terms of available result types, have a look at the screenshot on this thread here. Noted on the two missing types (Joint Displacements and Modal Participating Mass Ratios). I’d love to find out more on the intended workflow with the joint displacement results especially since this is a lot of data and can bloat the size of the upload significantly.
Noted on the dashbaord question - @dogukan and I can cook something up for you. On this note, we’d love to do something targeted and not arbitrary, so if you willing to share your workflow ideas with us please let us know! I’ll send you a private message
