Civil 3D Pressure Pipes not Exported

Speckle Help
1

Hi,

When exporting from civil 3d , pressure pipes not exported.

Speckle link project : https://app.speckle.systems/projects/e658e396c1/models/d48c5e23c2

Civil 3D attached file:
test.dwg (975.9 KB)

3

Hi @Mahmoud-Rawi ,

Welcome to the community! Feel free to Introduce yourself :person_gesturing_ok: to the community if you want to! :grinning_face:

Thanks for sharing a sample file. I was able to reproduce your issue. They are actually exported but they do not have any geometry so they don’t show up in the viewer.

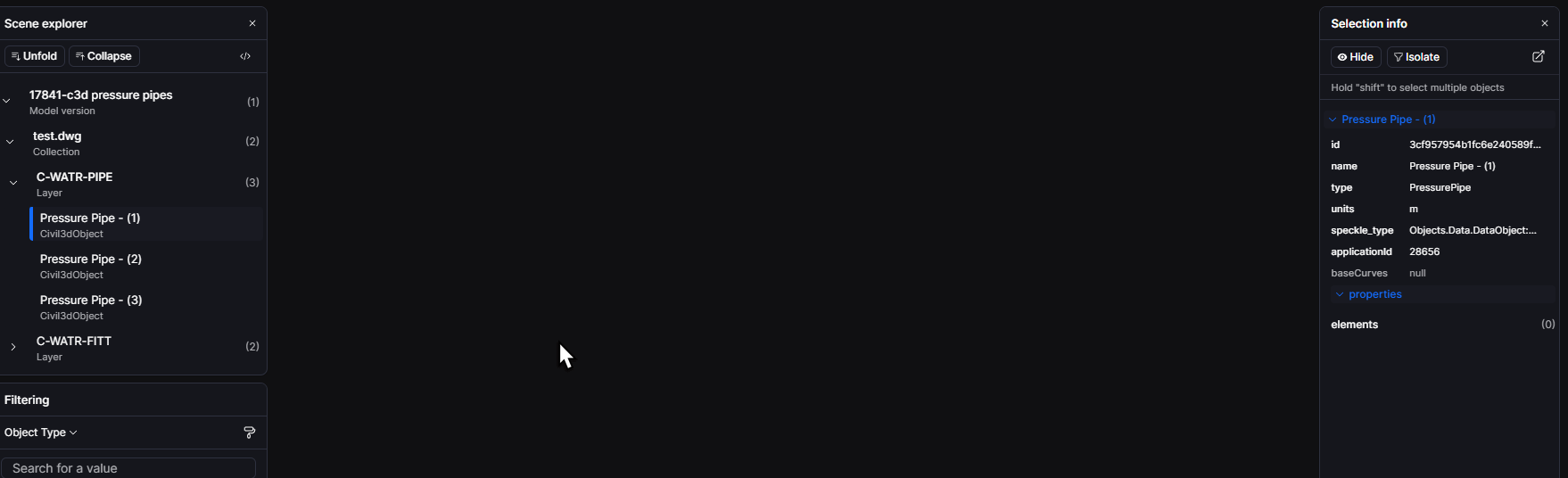

image1758×536 46.7 KB

It seems it’s only possible to select a pressure pipe from the prospector. Because when I select the alignment object and publish it to Speckle, I am able to see its geometry.

I will add this to our backlog. Thanks for reporting it.

1 Like
5

Thanks @gokermu for your reply, we are waiting very soon to solve that.

We try to export to Navisworks and then to Speckle. It works. But from Civil3D it will be shorten workflow.

P.S. @Mahmoud-Rawi is the BIM Manager of our team :grin:.

1 Like
6

Hi @Mohamed_Elmasri ,

I just pushed a fix for this that will be available from the next release of Next-Gen connectors.

Here’s a sample model from the file you attached:

{233A1CD9-3CE4-499C-A515-FF7F6C50F807}

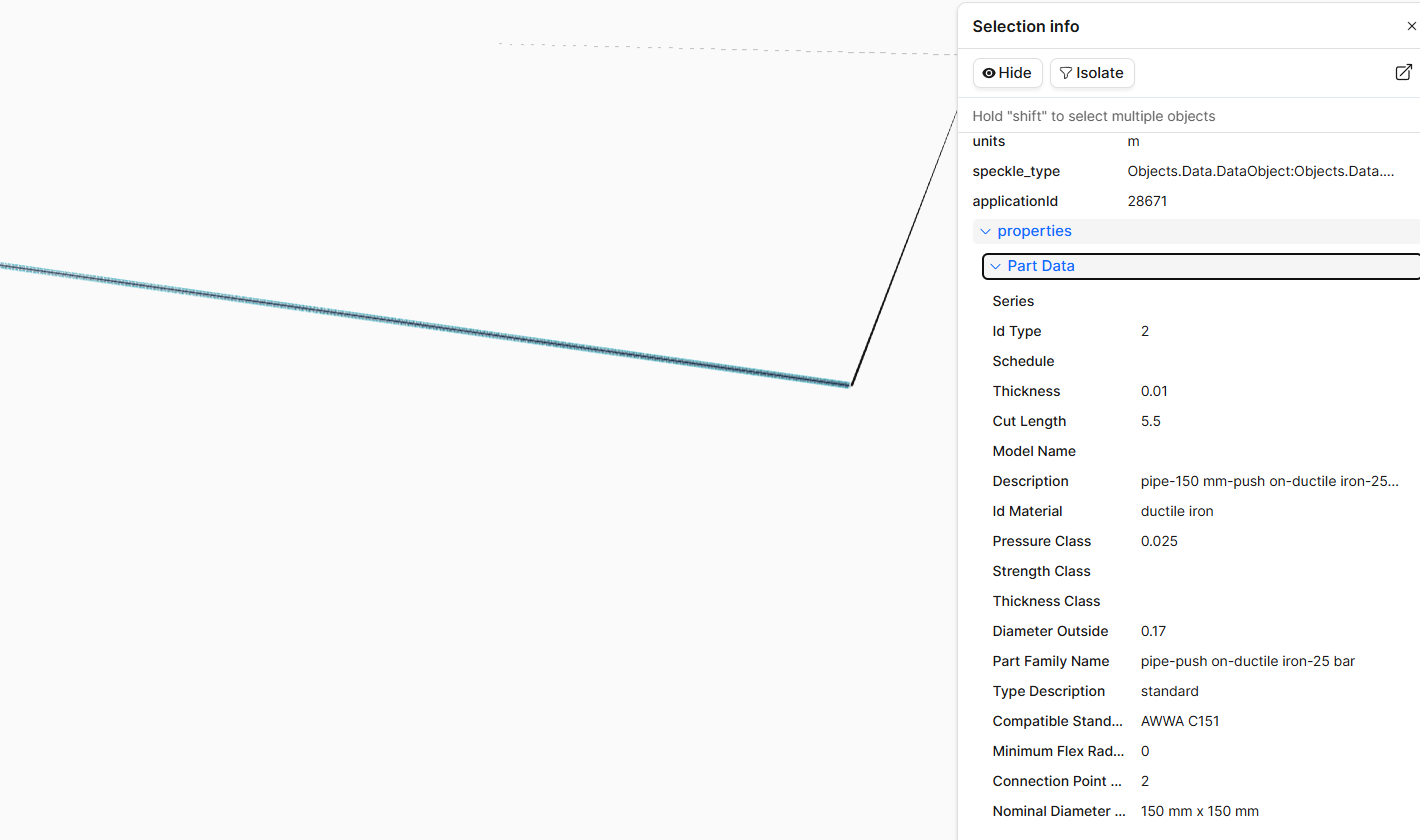

{233A1CD9-3CE4-499C-A515-FF7F6C50F807}1420×840 62.8 KB

https://latest.speckle.systems/projects/3f895e614f/models/1737754fb4@e983413510

2 Likes
7

Thanks for you update. Definitely I will test it once it pushed and released.
