Can't get the attributes from the IFC in Grasshopper

Speckle Help Help (Legacy V2)
,
1

Hi all,

I am new to Grasshopper and to Speckle as well. I want to work with some IFC models which were generated in Tekla Structure. I want to get the attributes of the elements.

  1. I tried to receive the data through a stream. My first problem is that I can not select the particular model to work with. In my account, there are several models and I want to choose between them.

  2. I got everything from all of the models but I can not get the attribute values to them.

The data should be there cause I can see it in my speckle account.

How could I work with the elements and attributes?

Rhino 8.17
Speckle 2.22.2

Thank a lot in advanced!

3

Hey @trick.ildiko

Welcome to our community! Feel free to Introduce yourself :person_gesturing_ok:!

  1. The quickest way to access a specific model, is to use its URL and use that string as an input to the Receive node.
  2. Could you share a sample model with us and indicate what properties you are looking for? Are you sure they exist inside the IFC?
1 Like
4

Hi @teocomi ,

I used the link, it workes fine.

My issue is that I can not get the parameters which are attached to the elements.
I thought that I need to deconstruct the model multiple times to get until the neccessary level but it did not worked for me.

The link to the model:
link

Thanks in advanced!

5

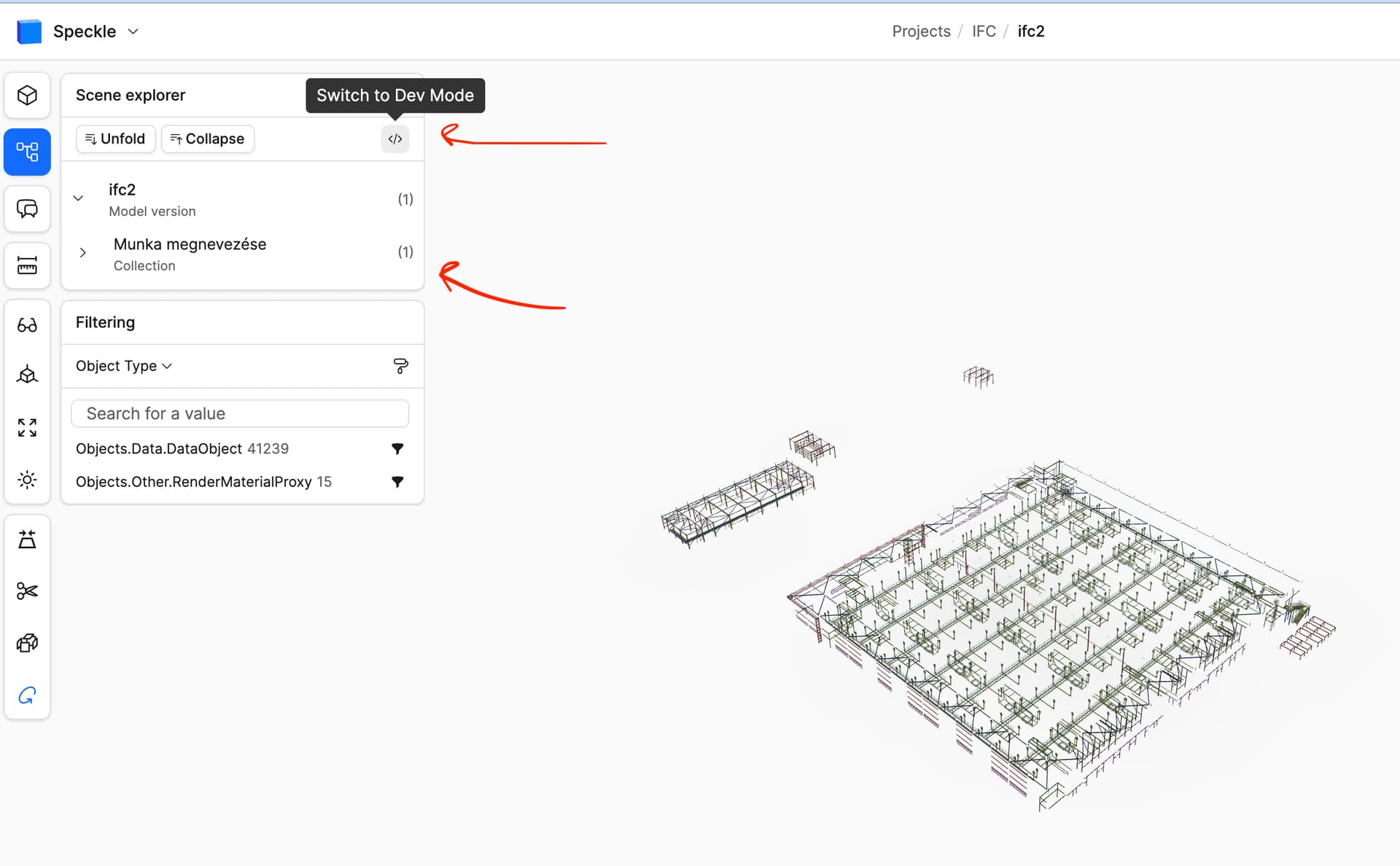

Thanks for sharing the model! Can you tell me more about what attributes you’re looking for? Maybe share a screenshot from the scene explorer?

PS you can enable dev mode to see ALL the parameters.

PPS we have just released v3 of the connector, you should try it!

image1920×1188 105 KB

6

Thank you for the update.

I was not clear. Online, in Speckle it works, and I can see everything.

I need all the data in Grasshopper. I tried all nodes to combine but I could not figure out how counld I work with the data that I can see online within Grashopper. I need to get eg. sizes or weight.

Thanks for your help, I appreciate it.

7

Hi @trick.ildiko ,

If you can switch to using Next-Gen Grasshopper, this should be pretty easy to do!

  1. download next gen from the Connectors tab of app.speckle.systems

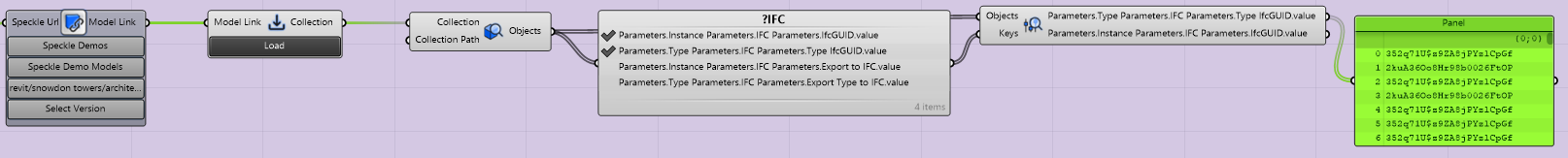

  2. You should be able to set up a simple script to retrieve your IFC properties like so:
    {DDB5AD71-79F9-4F10-863A-062685471F35}
    {DDB5AD71-79F9-4F10-863A-062685471F35}1614×163 39.8 KB

    (switch your Property Selector node search string to something like “BaseQuantities” for your tekla props)
  3. Refer to this post for where to find the Next-Gen Grasshopper documentation and sample scripts: Next-Gen Connectors: Changelog, Supported Workflows and FAQ - #34 by clrkng
2 Likes
8

Hi @clrkng,

This method works really good. Thank you for sharing it with me.

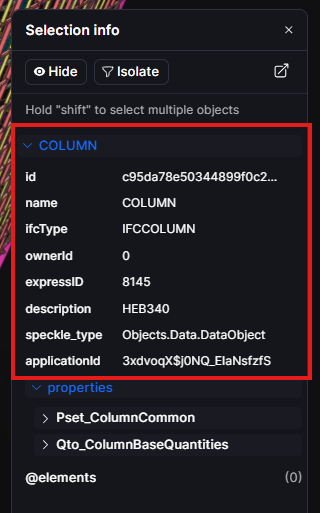

I have only one issue with it, I can get everything out that is under properties but I can not get the base information about the element. eg. id, name, ifcType, description

Képernyőkép 2025-06-02 075319
Képernyőkép 2025-06-02 075319320×513 34.3 KB

Thank you for being so helpful in advance!

9

In the alpha release of Grasshopper Next-Gen, we don’t currently expose these base fields on Speckle DataObjects just yet.

This will be supported by the full release, coming out sometime this month!

2 Likes
