Issue with Received Model when Importing via Speckle in Revit 2025

Help
1

Hello,

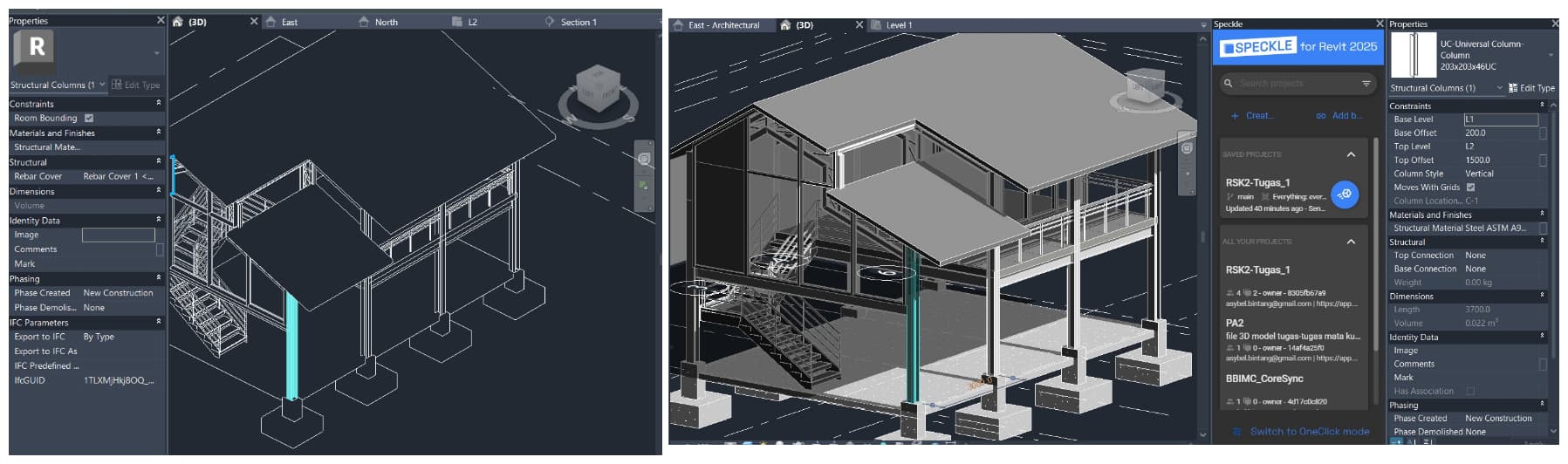

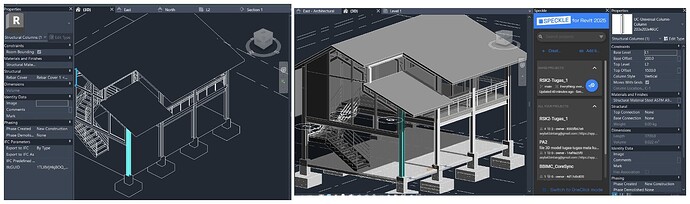

I’m reaching out for your help regarding an issue we’re encountering while using Speckle for an Architecture class assignment. The problem arises when importing a model from Speckle into Revit 2025. On my device, the model appears as expected (the first image below). However, when my friend imports the same model on their device, it looks completely different (see the second image).

We are both using Revit 2025 and the latest version of the Speckle Revit Connector .

Could this discrepancy be caused by specific configurations or settings that we might have overlooked? Are there any troubleshooting steps we can take to identify the root cause of this issue?

Additionally, if more information or context is needed to better understand the problem, please let me know what details would be helpful, and I’ll provide them promptly.

Thank you!

image1915×909 98.2 KB

image1919×900 97.1 KB

2

Those roofs certainly are radically different.

However, without knowing what the Revit roof looked like when the model was published, I cannot see what the issue might be.

Can you share the Revit file?

I have shared a Google Drive drop box with your email:

3

Thanks for getting back to me. I’ve uploaded the Revit file. Is it not typical for such problems to occur? could it be because the shaft placement or type import?

4

I’m unable to reproduce this roof artifacting @Asybel_Bintang are you sure it was sent from the exact model you shared with us?

I sent the same model using our legacy (v2) and next-generation (v3) connectors.

v3 v2
